Switches
NS Information
NS PRESSURE CONTROLS NOMENCLATURE
Catalog No. is decided according to the specifications.
ONS PROTECTION CONTROLS NOMENCLATURE
Catalog No. is decided according to the specifications.
Connection Table (for NS Series Pressure Controls )
| Connection Style＼Size | Copper | Steel | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 1/4" | φ8 | 3/8" | φ10 | 1/2" | φ10.5 | ||||
| B | Flare | Except Below | (Stand.) | B1 | B2 | B3 | B4 | ＿ | |
| ANS | B | B1 | B2 | B3 | B4 | ＿ | |||
| U | Union | U1 | U2 | ＿ | U (Stand.) | ＿ | U3 | ||
| G | Female Thread | Rc | G (Stand.) | ＿ | G3 | ＿ | G6 | ＿ | |
| G | G1 | ＿ | G4 | ＿ | G7 | ＿ | |||
| NPT | G2 | ＿ | G5 | ＿ | G8 | ＿ | |||
| M | Male Thread | Except Below | R | M02 | ＿ | M01 (Stand.) | ＿ | M07 | ＿ |
| G | M03 | ＿ | M05 | ＿ | M08 | ＿ | |||
| NPT | M04 | ＿ | M06 | ＿ | M09 | ＿ | |||
| ANS | R | M1 | ＿ | M (Stand.) | ＿ | M6 | |||
| G | M2 | ＿ | M4 | ＿ | M7 | ||||
| NPT | M3 | ＿ | M5 | ＿ | M8 | ||||
| K | Flareless | Direct | K1 | K2 | ＿ | K (Stand.) | ＿ | ＿ | |
| Connector | ＿ | ＿ | ＿ | ＿ | ＿ | K3 | |||
| Connection Style＼Size | 1000 mm | 2000 mm | |
|---|---|---|---|
| L | Capillary | L1 (Stand.) | L2 |

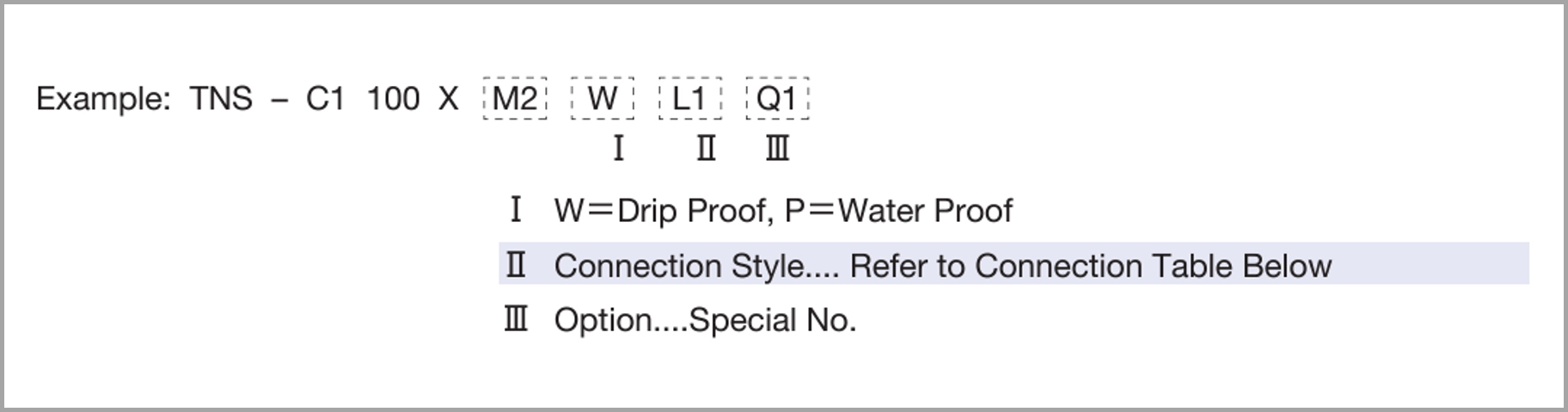

NS TEMPERATURE CONTROLS NOMENCLATURE
Catalog No. is decided according to the specifications.
Capillary Length Table
| Connection Style＼Size | Normal | Nickel Plated | ||
|---|---|---|---|---|
| Except BNS | BNS | Except BNS | BNS | |
| 1m | Standard | L1 | Q012 | L1Q012 |
| 2m | L2 | L2Q012 | ||
| 3m | L3 | L3Q012 | ||
| 5m | L5 | L5Q012 | ||
| 7m | L7 | L7Q012 | ||
| 10m | L0 | L0Q012 | ||
| Except Above | LQ | LZ | LQ012 | LZQ012 |
＊ TNS–C1010XC to TNS–C1070XC: Capillary length are 1m to 5m
Connection Dimension Table
ACCESSORIES
Mounting Brackets
Insert Holder, Protect Tube (For Temperature Controls)
Insert Holder
Protect Tube
Insert Holder
Protect Tube
