Type HMV Solenoid Valves for Ammonia Refrigerant

Catalog and Other Information
  • HMV（Female tapered threaded pipe connection）

    HMV（Female tapered threaded pipe connection）

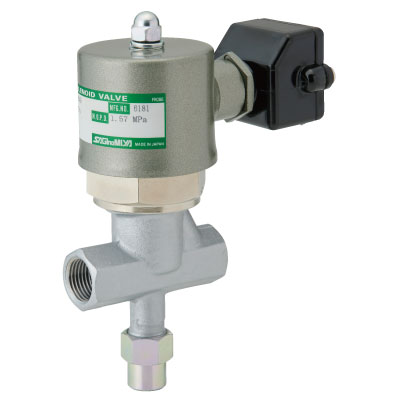

  • HMV（Female tapered threaded pipe connection, Lead wire DC coil）

    HMV（Female tapered threaded pipe connection, Lead wire DC coil）

  • HMV（Female tapered threaded pipe connection,drip-proof terminal box coil）

    HMV（Female tapered threaded pipe connection,drip-proof terminal box coil）

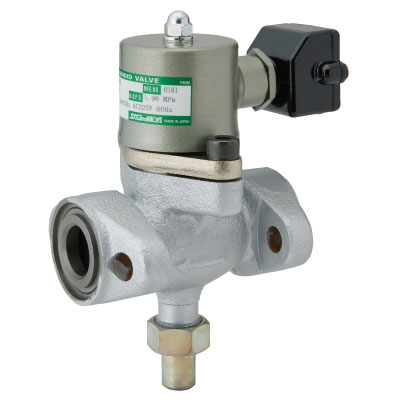

  • HMV（Flange connection）

    HMV（Flange connection）

Features

  • Normally closed solenoid valve for ammonia refrigerants.
  • Installation is only possible with horizontal piping, with the coil positioned above.

Applications

  • Product display cases, commercial freezers and refrigerators

Common Specifications

Maximum operating pressure: 2.55 MPa
Test pressure: 3.83 MPa
Fluid temperature range: -5 to 80℃ (if operating pressure is under 1.02 MPa, -50 to 80℃)
Operating ambient temperature range: -5 to 40℃ (if operating pressure is under 1.02 MPa, -35 to 40℃)
