BTH Measuring System for Inertia Moments

This system can quickly and accurately measure the rigid body characteristics of transmission-equipped engines, including principal inertia moment values, directions of principal axes, mass, and center of gravity. It is essential for developing vibration-proof designs for engines. Utilizing these highly accurate measurements from engine vibration analysis allows for the ideal arrangement and characteristics of engine mounts to be determined.

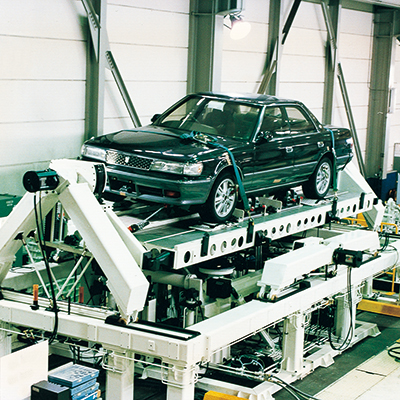

This system is capable of automatically measuring the center of gravity height, pitching, rolling, yawing, and inertia moments of finished vehicles. It can complete measurements in less than four hours, which traditionally took two to three days.
