DXH Driving Simulator
DiM(Driver - in - Motion®)

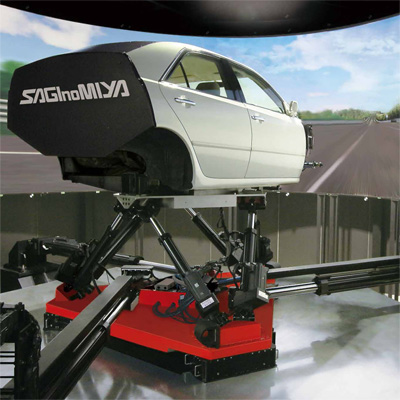

The Driver-in-Motion®, or "DiM" simulator, is the latest of its kind, providing a "real-time" immersive experience of vehicle dynamics while a car model is still in early development, streamlining and accelerating the testing phase.
The DiM's combined Hexapod and Tripod configuration and innovative "floating" system are the keys to its stellar performance as a motion platform simulator.
The DiM250 and DiM300 models feature extended stroke capabilities, enabling them to replicate longer accelerations compared to the DiM150. This allows for comprehensive evaluation across a wider range of scenarios.
*Driver-in-Motion is a trademark of VI-grade GmbH.
DiM300 ［NEW］
Simulator hardware specifications are constantly being evaluated in new settings, and they are being adapted for use in more areas. The latest addition to the ever-evolving DiM series, the DiM300, offers twice the operating range of the standard DiM150, greatly expanding its range of applications.
Specifications
| DiM 150 | DiM 250 | DiM 300 | ||
|---|---|---|---|---|
| Max. acceleration | X,Y | ± 25m/s2 | ||
| Z | ± 35m/s2 | |||
| Max. frequency | 30Hz | |||
| Max. stroke | X,Y | ± 0.75m | ± 1.25m | ± 1.50m |
| Z | ± 0.28m | |||
| Yaw | ± 25° | |||
| Max. load mass | 500kg | |||
