CRH Steering Test System
Steering Test System with HIL Simulation (NEW)
This system utilizes our own quiet and highly responsive linear servo actuator. It is ideal for evaluating HILS response and noise, both common challenges for conventional hydraulic servos. This system is designed to safely assess the feel and fail-safes of the steering assembly without the need for a vehicle. It can also act as an evaluation system for steering stability when integrated with DiM.
CRH440 Steering Test System with HIL Simulation
Rack side
| Max. force（instantaneous maximum） | ±12kN |
|---|---|
| Max. displacement | ±125mm |
| Max. velocity | ±2m/s |
| Frequency range | 0.1～50Hz |
Pinion
| Max. torque（instantaneous maximum） | ±330N-m |
|---|---|
| Max. angle | ±1000° |
| Max. velocity | ±860°/s |
| Frequency range | 0.1 to 10Hz |

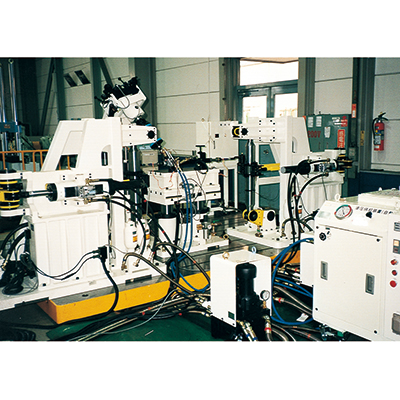

Power Steering Performance and Durability Test System
This system tests the durability and performance of the hydraulic valves and pumps that are incorporated into the power steering system by applying loads equivalent to those experienced in actual vehicles by the tie rod axial direction and knuckle.
CRH340 Steering Simulator
Pinion
| Max. torque | ±45N･m |
|---|---|
| Rotation angle | ±720 ° |
| Max. velocity | ±15rad/s |
| Frequency range | 0.01 to 10Hz |
Tie rod
| Max. force / displacement | ±10kN±100mm |
|---|---|
| Max. velocity | ±200cm/s |
| Frequency range | 0.01 to 50Hz |
Tie rod Axial
| Max. force / displacement | ±10kN±100mm |
|---|---|
| Max. velocity | ±50cm/s |
| Frequency range | 0.01 to 60Hz |
CRH702 Intermediate shaft Elastomer test machine
| Max. force | ±50N・m |
|---|---|
| Max. angle |
±50°(Static) ±10°(Dynamic) |
| Max. angle velocity | ±100°/s |
| Frequency range | 0.1 to 50Hz |
Steering Column Spin Torsional Durability Test System
This system is designed to test the durability of the steering column, using hydraulic motors for input.
CRH210 Steering Column Test System
| Max. torque | ±100N・m |
|---|---|
| Max. angle | ±1200° |
| Max. angular velocity | ±6000°/s |
