AKH Test System for Aircraft
Shaft Test Simulator
-
-
AKH334 Jet Engine Shaft Test Simulator
This system can simulate fatigue in spline joints. It dynamically applies tensile, torsional, and rotational loads to the shaft simultaneously.
AKH334 Jet Engine Shaft Test Simulator
| Axis | Torsional | Bend | |
|---|---|---|---|
| Max. force | ±500kN | ±86kN･m | ±11kN･m |
| Max. displacement | ±30mm | ±5° | ±2° |
| Max. velocity | ±1cm/s | 10°/s | 10°/s |
Shaft Test Simulator
-

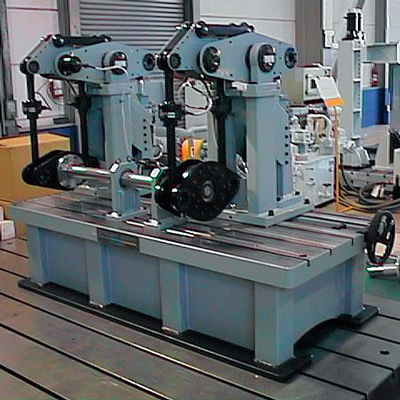

AKH340 Shaft Test Simulator
This system can assess the durability of engine shafts. The system is capable of dynamically simulating the application of bending moments in two directions to shaft connections while subjecting the shaft to a unidirectional and constant torsional load.
AKH340 Shaft Test Simulator
| Torsional | Bend | |
|---|---|---|
| Max. force | ±3kN･m | ±10kN |
| Max. displacement | ±30° | ±50mm |
| Max. velocity | 20°/s | 26cm/s |
| Frequency range | 0.01 to 1Hz | |
